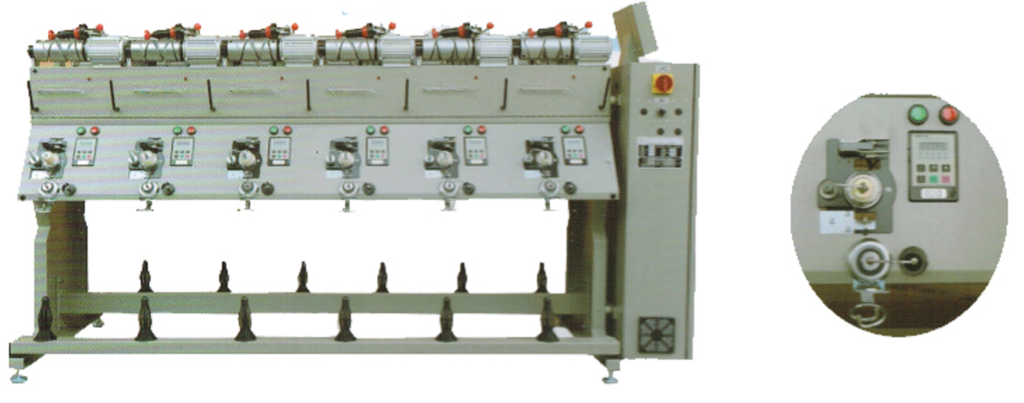

Type of Machine:  Double side, single layer
Model:  DBHW
Consumed power:
75W per spindle at max. speed, excluding the motor power of
cleaner
Take up package:  0° Cylindrical tubes, bicopress or conical 3°30‘, 5°57‘
Drum yarn length:  150mm
Package diameter:  Max. 250mm
Yarn winding speed:  300-1200m/min
Electrical anti-patterning device:  Controlled by inverter
Tension device:  Every spindle has a yarn tension device
Length counting device:  Controlled by PLC & length displayed by screen

Yarn break control device:  Stop automatically when yarn breaks
Speed regulation:  By inverter, slow start
Anti-hard edge device:  Mechanically, suit for soft winder
Machine(12 heads) weight and
dimension:
250kg/2060mm(length)X960mm(width)X2020mm(height)
