General information：

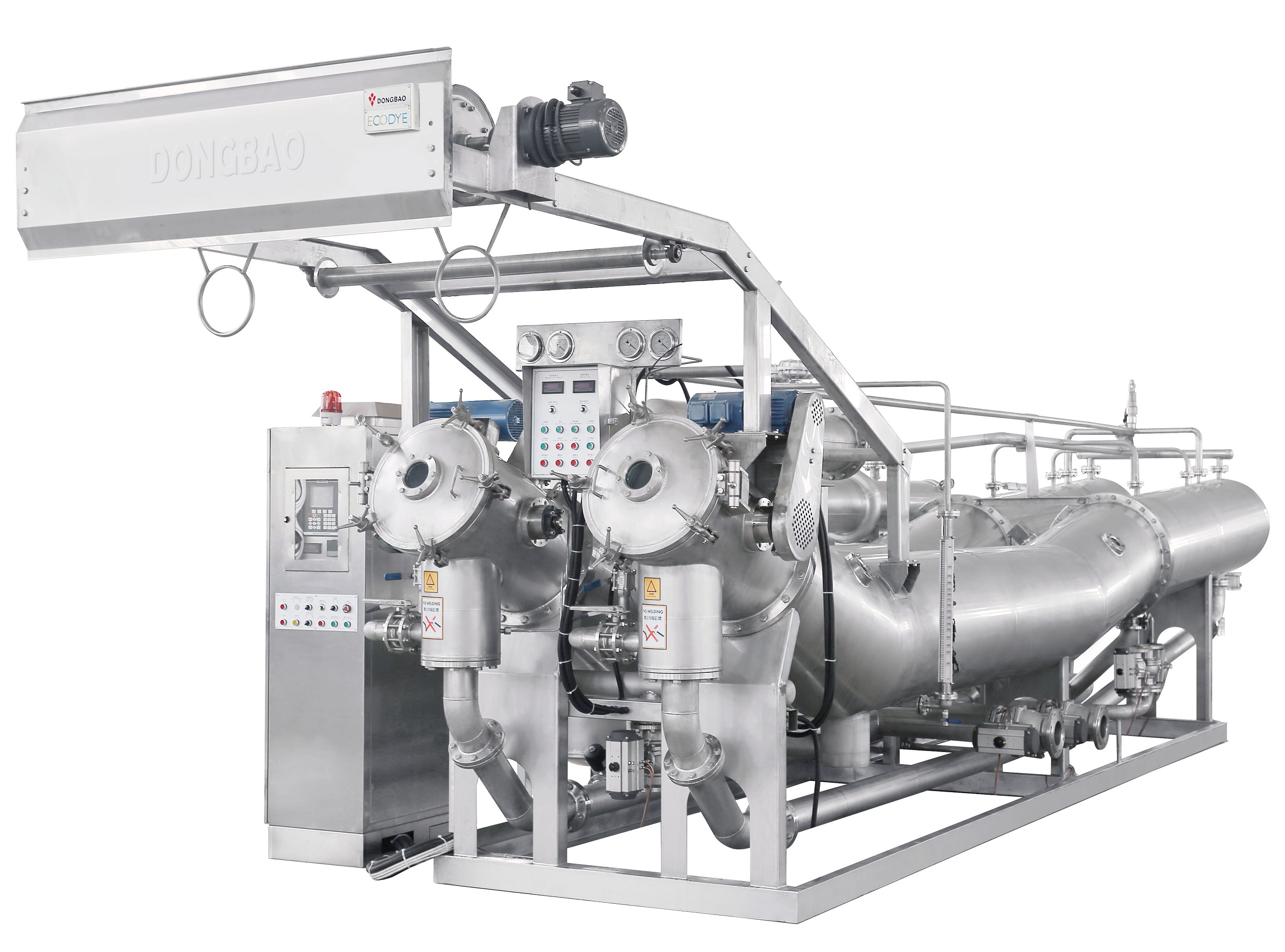

The innovative JED is a high temperature, high pressure jet dyeing machine. This new design with its swimming material transport and low tension of the goods avoids crease marks and provide high quality for a wide range of fabrics: Polyester, Rayon, Nylon, Cotton, T/R, T/C and many more.
High efficient and economic, the JED saves over 30% water, 30% auxiliaries and steam compare to traditional jet dyeing machines.
Technical details：
– Touch screen controller
– Chamber capacity 250 kg
– Fabric winch drive max. 600 m/min,depending on fabric properties
– Liquor ratio start at 1:4.5
– Frequency controlled pump motor
– Automatic seam detector
– Fabric circulation control
– Electro-pneumatic operated valves
– Operating temperature up to 140℃
– Fast dosing system, bypass function
– Control cabinet in stainless steel
– Electronic water meter
– Electronic measurement of liquor ratio
– Frequency regulated unloading winch
Optional：
– Hot water stock tank, preparation of the complete process bath
– Second service tank
– HT drain
– Double rope unloading device
– Self cleaning filter
– Unloading plaiter
– Power drain function
