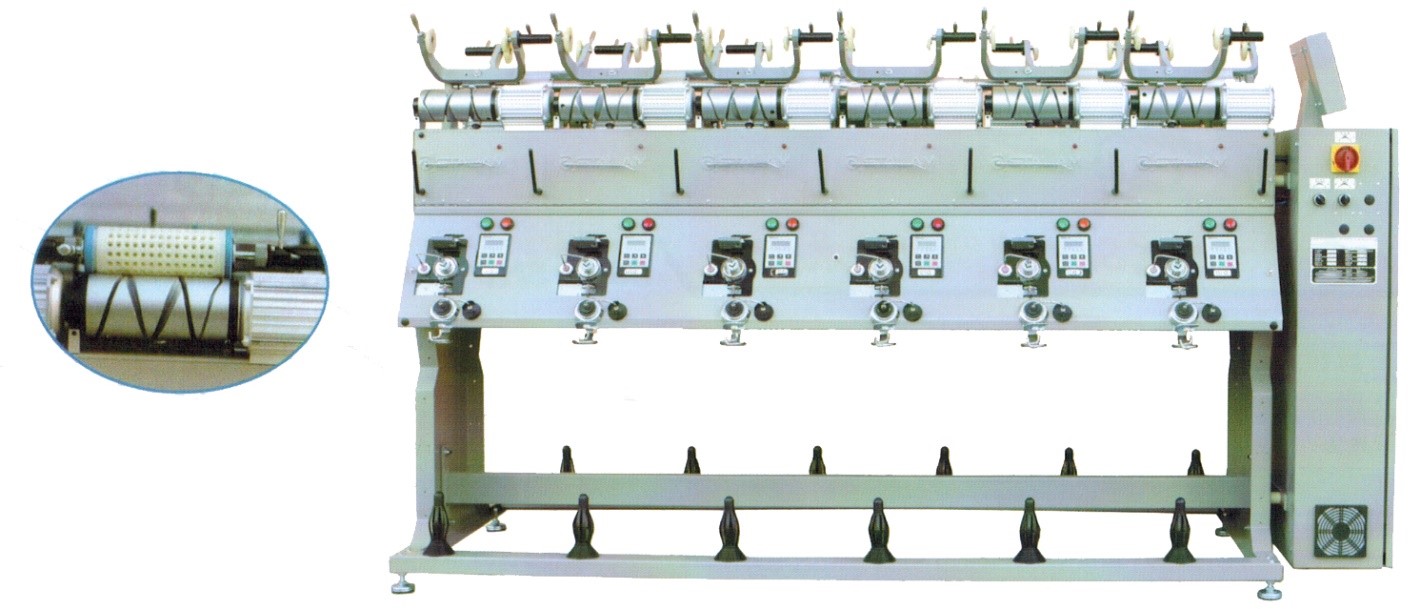

Type of Machine:    Double side, single layer
Model:    DBSW
Consumed power:
75W per spindle at max. speed, excluding the motor power
of cleaner
Take up package:    0° Cylindrical tubes, bicopress or conical 3°30‘
Drum yarn length:    150mm
Package diameter:    Max. 250mm
Yarn winding speed:    300-1200m/min
Electrical anti-patterning device:    Controlled by inverter
Tension device:    Every spindle has a yarn tension device:
Length counting device:    Controlled by PLC & length displayed by screen

Yarn break control device:    Stop automatically when yarn breaks
Speed regulation:    By inverter, slow start
Anti-hard edge device:    Mechanically, suit for soft winder
Machine(12 heads) weight and
dimension:
250kg/2060mm(length)X960mm(width)X2020mm(height)
